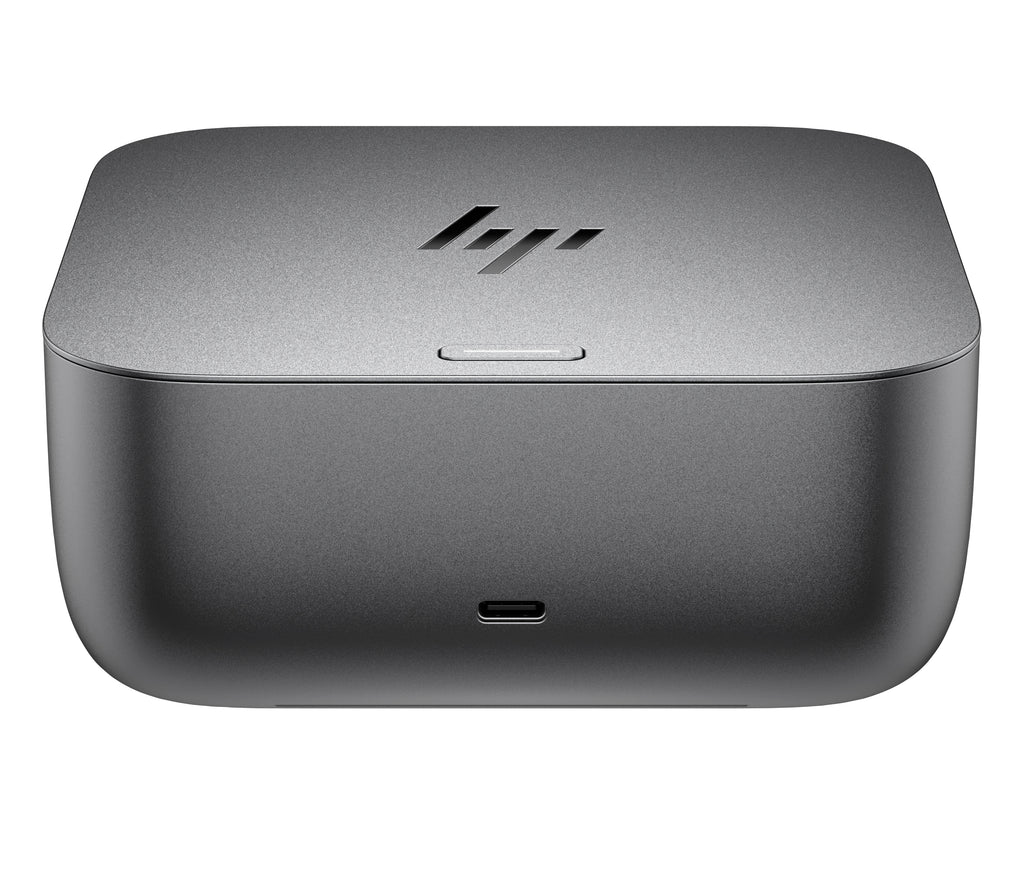

HP Thunderbolt 4 100W G6 Dock
Powering your workday flows naturally with the HP Thunderbolt 4 100W G6 Dock. Focus on what matters with hands-off management, frictionless connections to your devices and power that's ready when you need it. With state-of-the-art security, your devices remain safe.
Technical Specifications

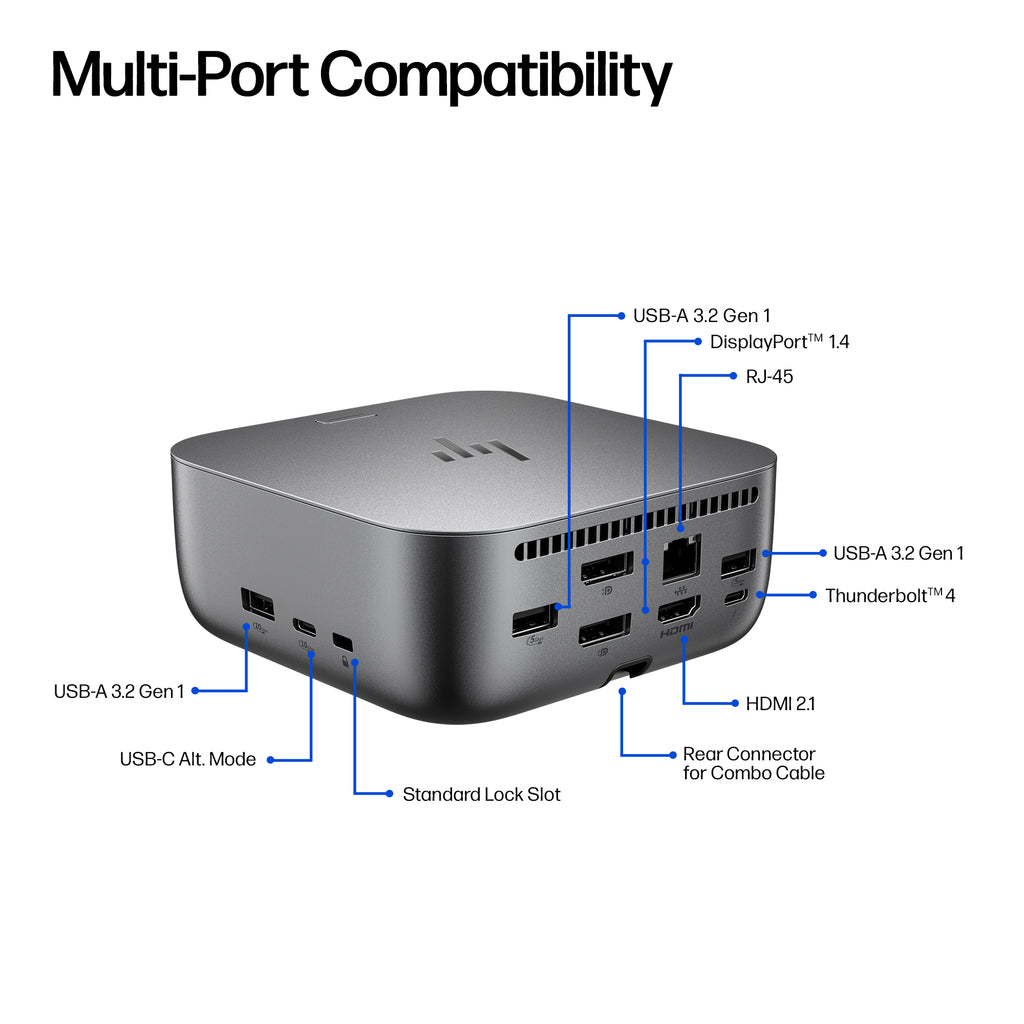

Ports & interfaces
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Microphone in | No |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 |
Performance
| Card reader integrated | No |
| HD type | 5K Ultra HD |
| Maximum digital resolution | 5120 x 2880 |
| Maximum refresh rate | 360 |
| Cable lock slot | Yes |
| Cable lock slot type | Nano |
| Product colour | Grey |
| LED indicators | Power |
| Country of origin | China, Thailand |
| Compatibility | Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more. |
| HP segment | Business |
Power
| Power supply | 120 |
| Thunderbolt 4 cable length | 1 |
Software
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Operating temperature (T-T) | 0 - 35 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
| Operating altitude | -15 - 3048 |
| Non-operating altitude | -15 - 12192 |
Sustainability
| Sustainable technologies and materials | 35% post-consumer recycled plastic |

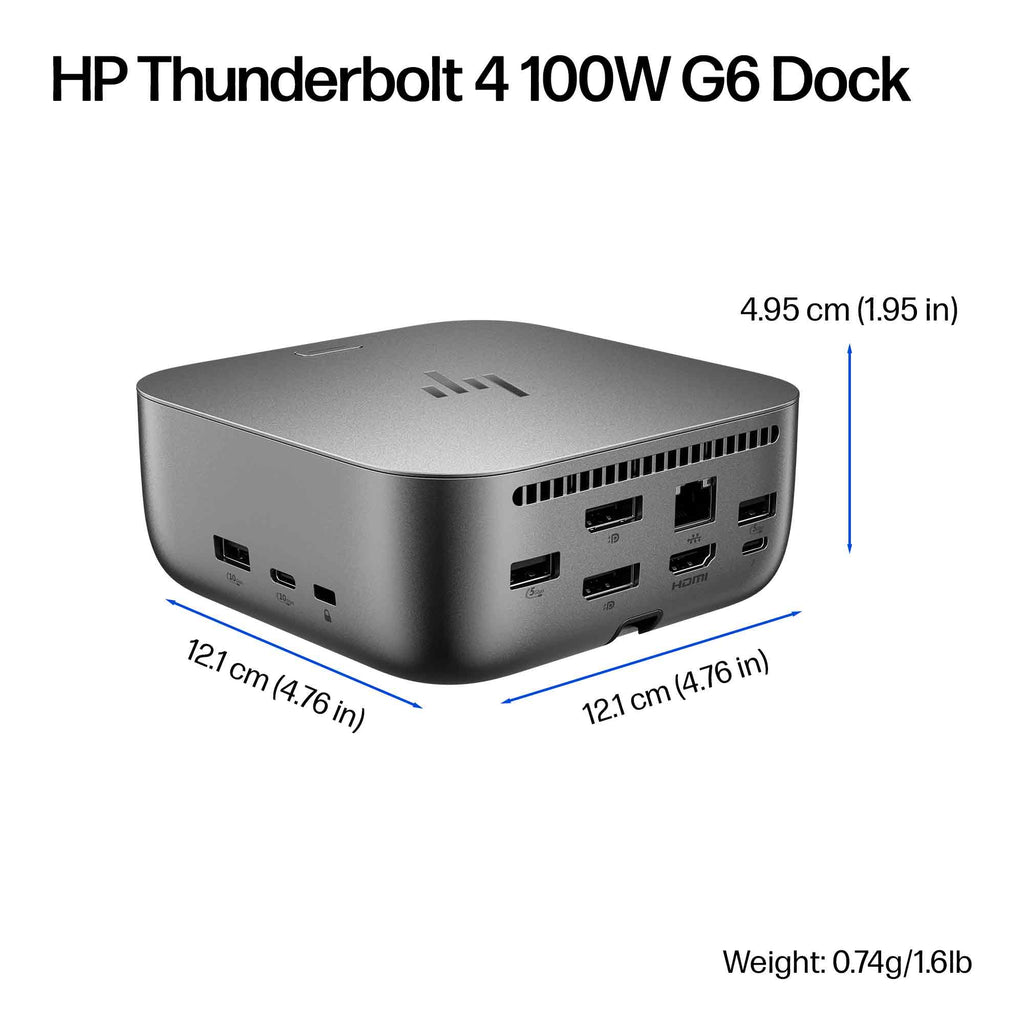

Weight & dimensions
| Width | 121 |
| Depth | 121 |
| Height | 49.5 |
| Weight | 740 |
Packaging data
| Package width | 396 |
| Package depth | 171 |
| Package height | 95 |
| Package weight | 1.08 |
Packaging content
| Warranty card | Yes |
| Cables included | AC |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 10 |
| Carbon emissions, manufacturing (kg of CO2e) | 7 |
| Carbon emissions, logistics (kg of CO2e) | 0.3 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.1 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2 |
Technical details
| Box contents | HP Thunderbolt 4 100W G6 Dock; 120 W power adapter; Thunderbolt 4 cable (1 m); Power cord; Product notice; Warranty card |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
Logistics data
| Master (outer) cases per pallet layer | 28 |
Other features
| Compatible operating systems | Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS |
| Pallet dimensions (W x D x H) (imperial) | 1199.9 x 1000 x 140 |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 140 |
| UNSPSC-code | 43211602 |
| Bundled software | Poly Lens with automatic firmware updates |
Product Overview
Transform your enterprise workspace with the HP Thunderbolt 4 100W G6 Dock, engineered to deliver seamless connectivity, robust power delivery, and enhanced productivity for modern hybrid professionals. Utilizing high-speed Thunderbolt 4 technology, this docking station supports ultra-fast data transfers and sharp multi-display configurations up to 5K resolution. With up to 100W of USB Power Delivery, it keeps laptops and mobile workstations fully charged and ready for action while eliminating cable clutter on your desk.
Built with enterprise security and centralized IT management at its core, the HP G6 dock simplifies fleet management through integrated support for automated firmware updates and broad multi-OS compatibility across Windows, macOS, Linux, and ChromeOS. Equipped with 2.5 GbE Ethernet for ultra-fast, reliable wired networking alongside versatile USB-A, USB-C, and HDMI 2.1 ports, it is an essential foundation for any business deployment requiring uncompromising performance and security.
