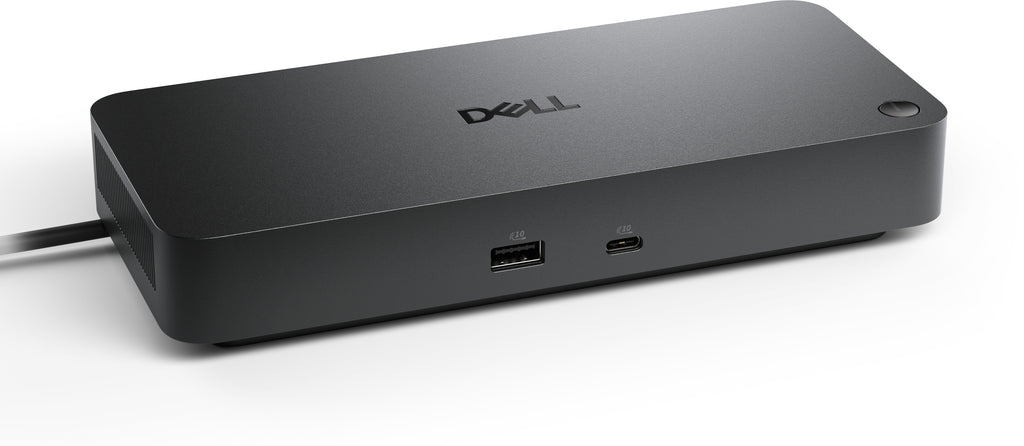

Dell Pro Dock - WD25
Dell Pro Dock - WD25
Power Delivery (Power Provided)
Video Resolution
Interfaces
OS Required
Features / Data Link Protocol
Fuel your productivity
Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.More manageable
Improved manageability
Simplify firmware updates
Work with confidence
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable² that can be routed left or right.
Designed for sustainability
The Dell Pro Dock is built with at least 65% post-consumer recycled materials³ and packaged with 100% recycled or renewable packaging,³ and offering up to 72% power consumption reduction on standby mode.³Ports and slots

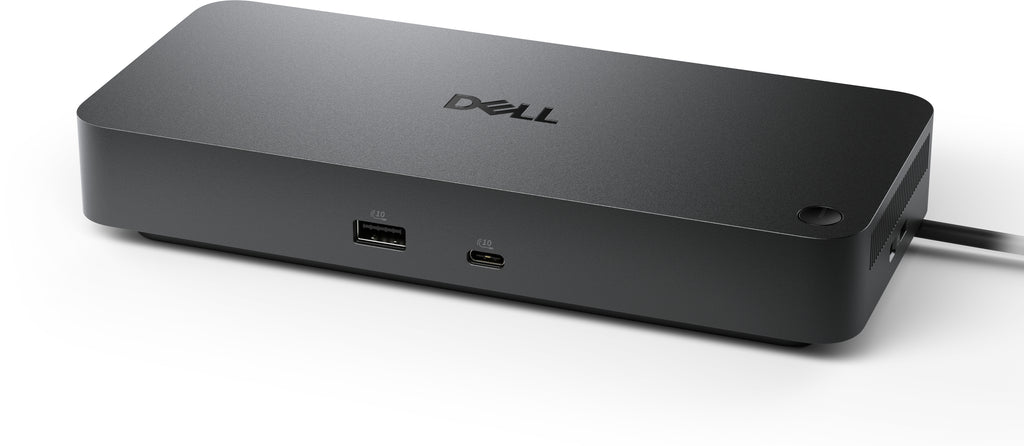

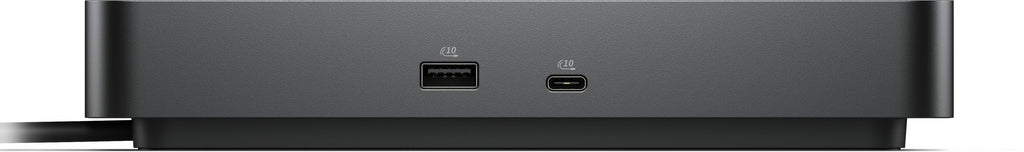

1. USB-A 3.2 Gen 2 with
PowerShare
2. USB-C 3.2 Gen 2

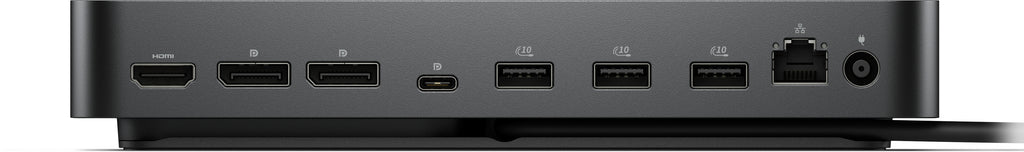

Rear side
3. HDMI 2.1
4. DisplayPort 1.4
5. DisplayPort 1.4
6. USB-C 3.2 Gen 2 Multifunction
DisplayPort 1.4
7. USB-A 3.2 Gen 2 with
PowerShare
8. USB-A 3.2 Gen 2 with PowerShare
9. USB-A 3.2 Gen 2 with PowerShare
10. 2.5 Gigabit Ethernet (RJ45)
11. Power In
2. The accurate length of this cable is 0.80 meters. The image provided is for illustrative purposes only.
3. Based on Dell internal analysis, December 2024.
Technical Specifications
Ports & interfaces
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Wake-on-LAN ready | Yes |
Performance
| Card reader integrated | No |
| Data transfer rate | 2500 |
| Maximum digital resolution | 6144 x 3456 |
| Number of displays supported | 4 |
| Maximum refresh rate | 60 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Charging function | Yes |
Power
| Power source type | DC |
| Power connector | USB Type-C |
| Power supply | 130 |
Software
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Width | 90 |
| Depth | 35.2 |
| Height | 205 |
| Weight | 550 |
Packaging content
| Cables included | Power |
| AC adapter included | Yes |
| Quick start guide | Yes |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 90.7 |
| Carbon emissions, manufacturing (kg of CO2e) | 27.39 |
| Carbon emissions, logistics (kg of CO2e) | 2 |
| Carbon emissions, energy usage (kg of CO2e) | 60.5 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.82 |
| PAIA version | GaBi version 1, 2025 |
Product Overview
Empower your workforce with the Dell Pro Dock WD25, a next-generation enterprise docking solution built to streamline workstation setups and drive peak productivity. Equipped with universal USB-C connectivity and up to 100W of smart power delivery, this dock reliably fuels laptops and AI PCs while simultaneously driving up to four external displays with crisp resolutions through HDMI 2.1 and DisplayPort 1.4. In addition to expansive video performance, integrated 2.5GbE Ethernet and multiple 10Gbps USB ports provide the rapid data throughput and solid network stability demanded by high-performance office environments.
Tailored for effortless IT administration, the WD25 reduces administrative overhead across hybrid and hot-desking workspaces. Advanced manageability features—including MAC Address Pass-Through, Power Button Sync, and silent firmware updates that deploy seamlessly without interrupting the end-user—ensure consistent security and lifecycle support across mixed-brand fleets. Built sustainably with post-consumer recycled materials and an energy-efficient standby profile, the Dell Pro Dock WD25 delivers an optimal balance of enterprise scalability, user versatility, and long-term sustainability.
